ISR Performance Universal Steel Dimple Plates - 20mm Holes

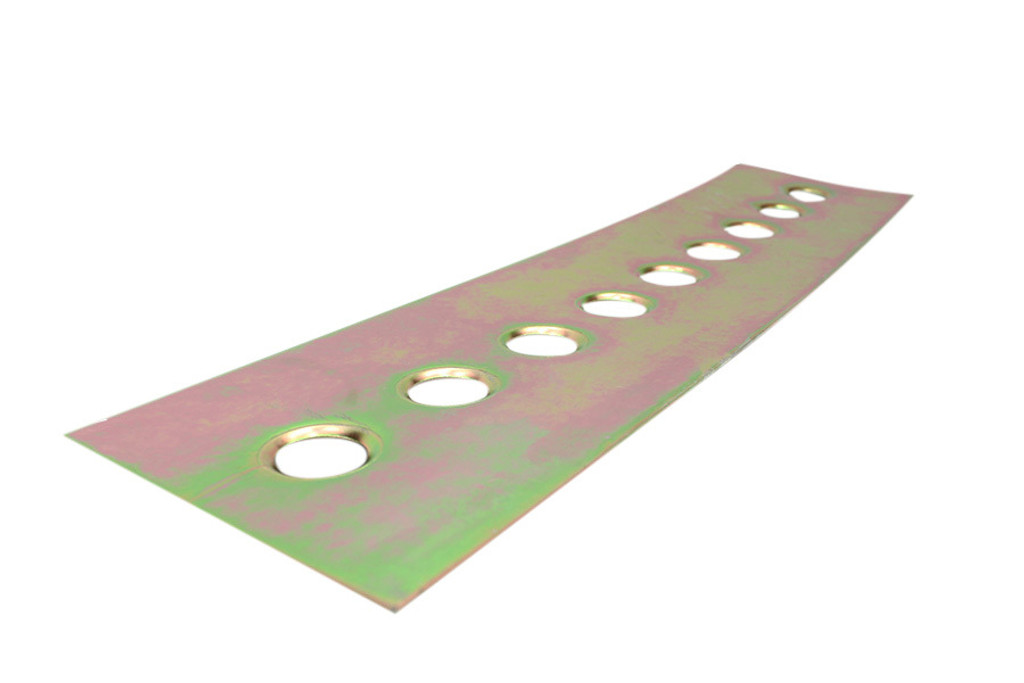

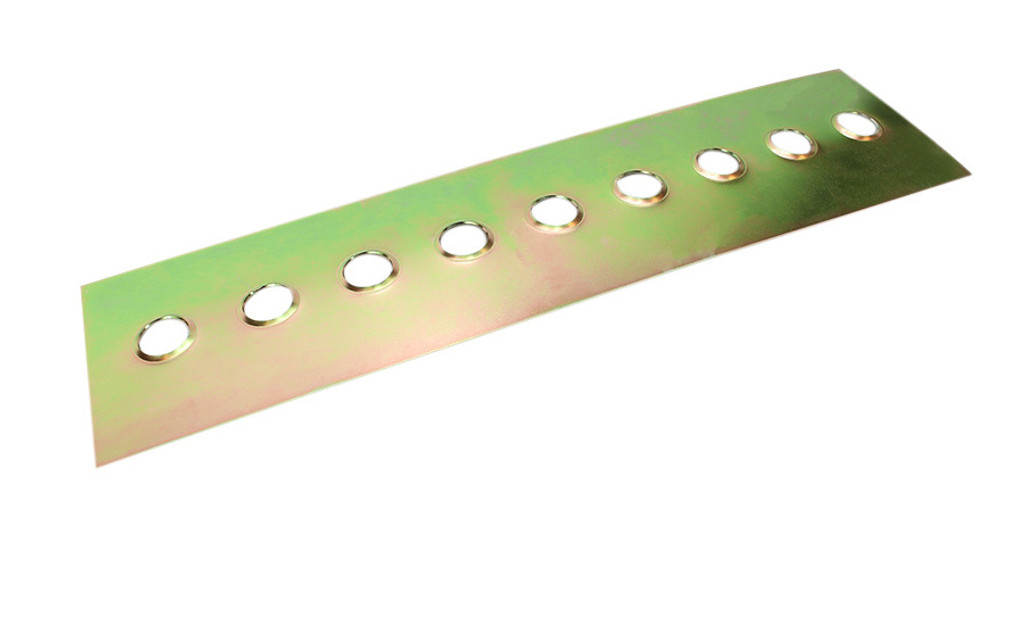

The ISR Performance universal steel dimple plate with 20mm holes is a pre-formed sheet of dimple die plate for roll cage gussets, chassis bracing and brackets. Each plate measures 24 inches by 6 inches by 1/8 inch thick, with 20mm flared holes stamped across the surface. Cut the section you need, weld it in, and get the strength and look of dimple-died steel without owning a press and die set.

Specifications

• Dimensions: 24 inches x 6 inches x 1/8 inch
• Hole size: 20mm, flared dimple pattern
• Material: steel, zinc coated
• Sold individually

Who It Is For

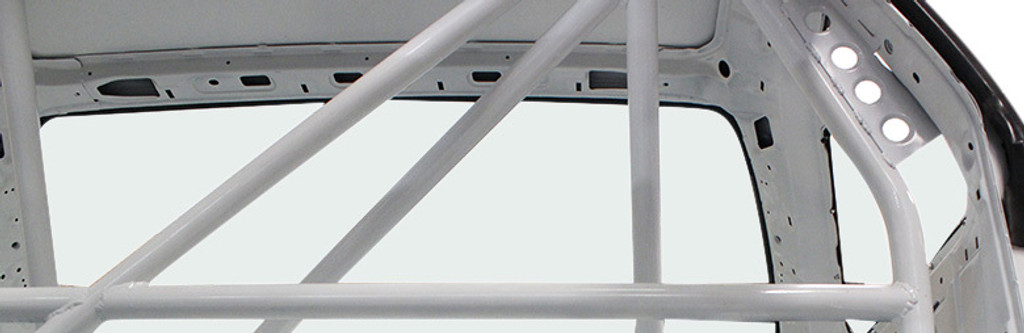

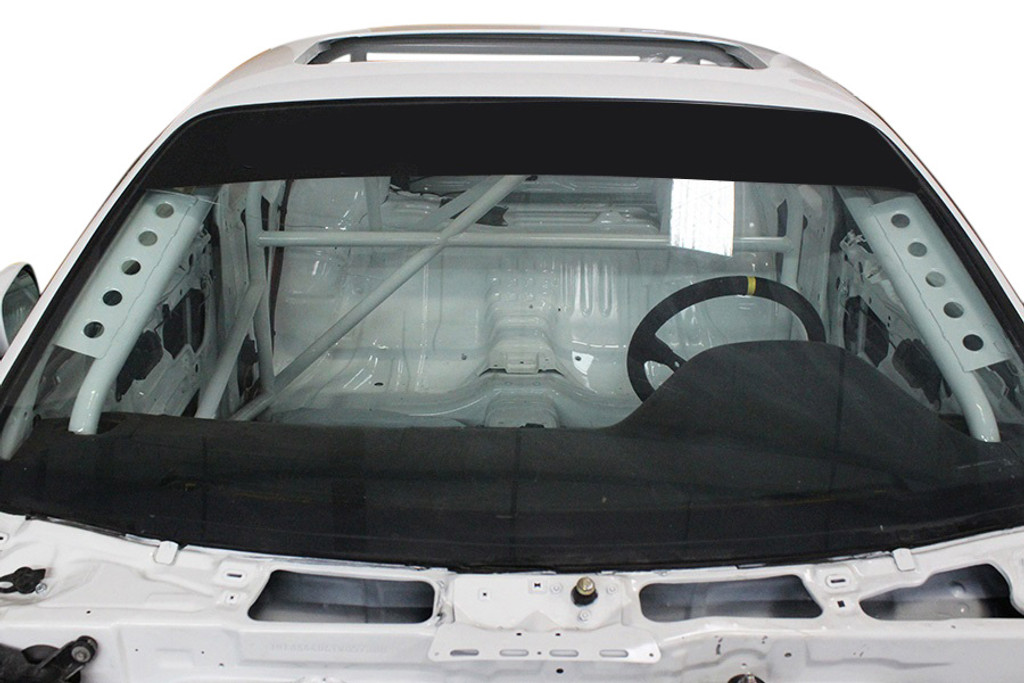

These plates are made for the shop or home fabricator who does not want to take the time, or buy the tools, to dimple plate for a cage. The 20mm hole is the smallest in ISR's lineup, which keeps more material between holes on a narrow 6 inch plate, a good fit for compact gussets at cage joints, seat mount reinforcements and small brackets.

Why Dimple Plate

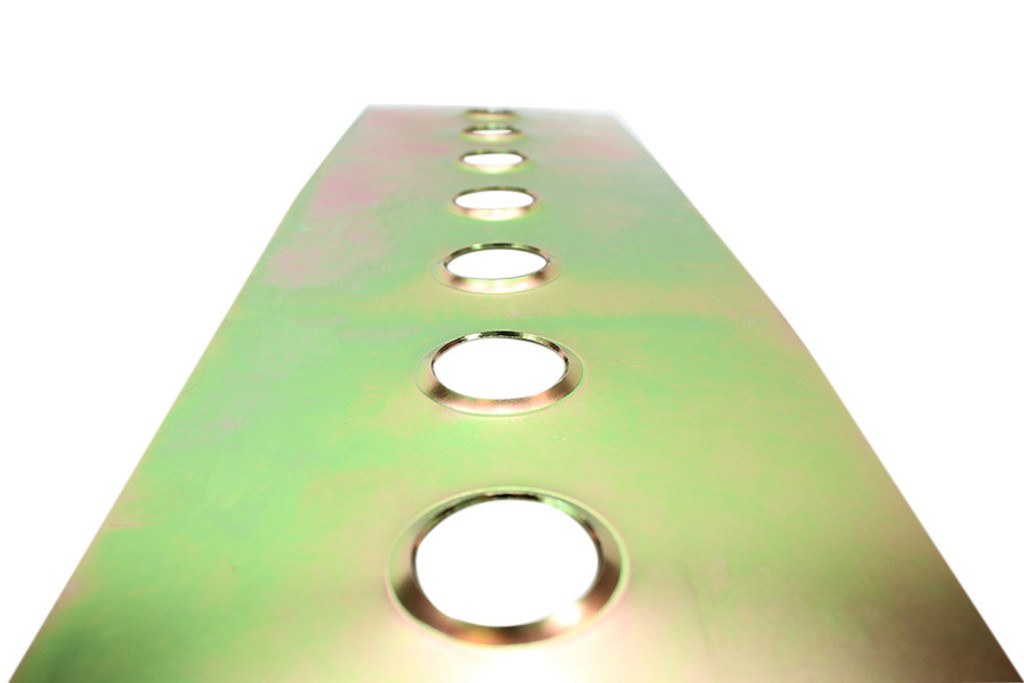

A flared hole adds stiffness to flat sheet by creating a formed lip around each opening, so the plate resists flex better than a plain piece of the same thickness while weighing less.

Usage Notes

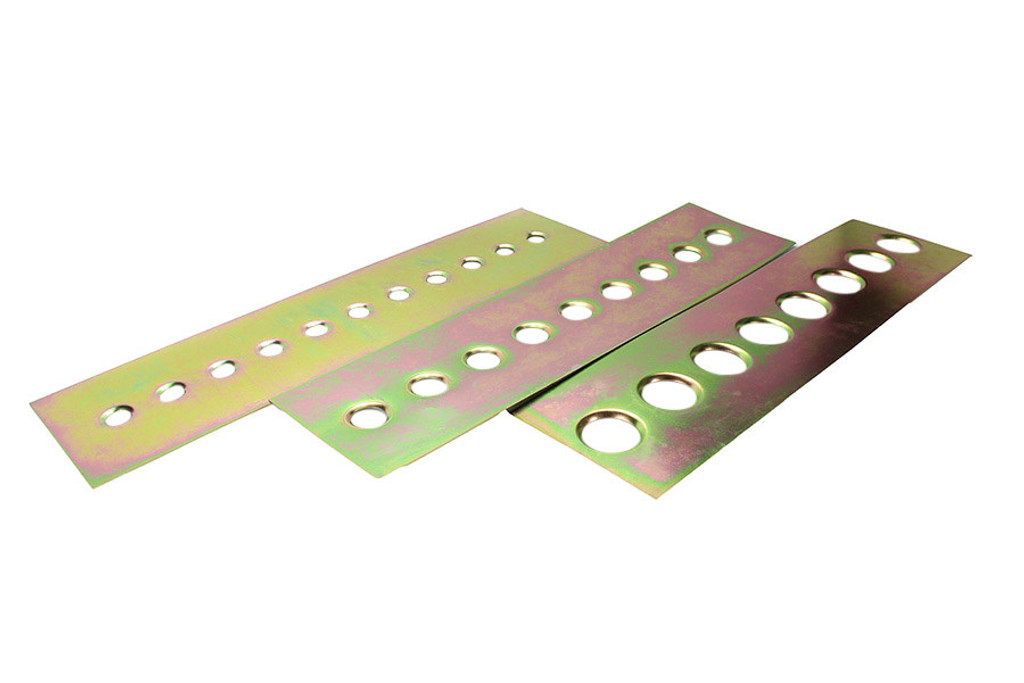

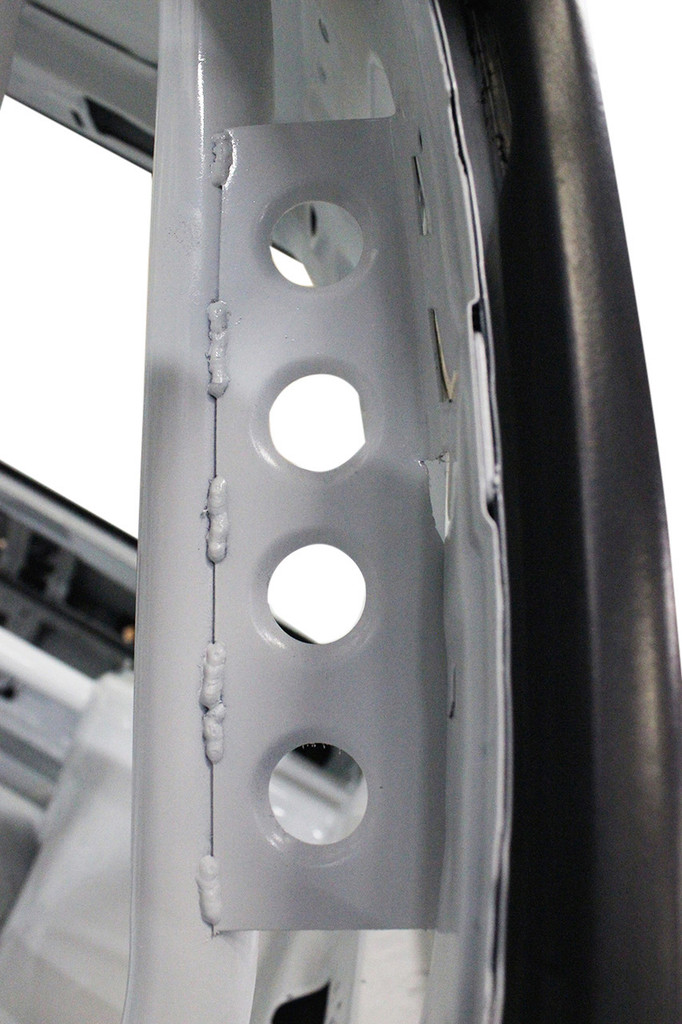

Just cut to your desired length and width and weld in. The zinc coating is there to stop the steel from rusting in storage and shipping; the coating must be sanded off wherever the plate will be welded, since welding over zinc produces poor welds and harmful fumes. 29mm and 42mm hole versions are available separately.

All ISR Performance products are designed for off-road use only.
