SG Brake Line Relocation kit - Nissan 240sx S13/S14

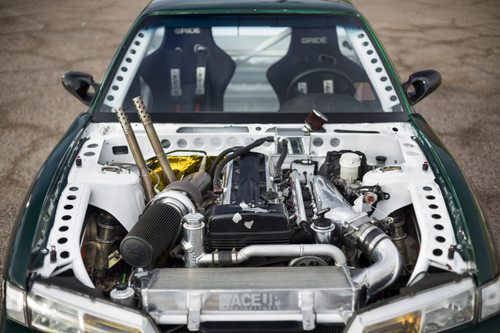

Ace Up Motorsports is pleased to offer the SG DOT approved brake line relocation kit for the Nissan 240SX S13 and S14 chassis. It exists to clean up and simplify the brake plumbing on an S-chassis: the kit eliminates the hard lines that run across the firewall, and it can also be used to eliminate ABS. For a swapped or built engine bay where the factory hard lines are in the way, or for a drift car shedding the ABS system, this is the direct route.

What the kit does

• Eliminates the factory hard lines that cross the firewall
• Can be used to delete the ABS unit and its plumbing
• DOT approved lines for brake service

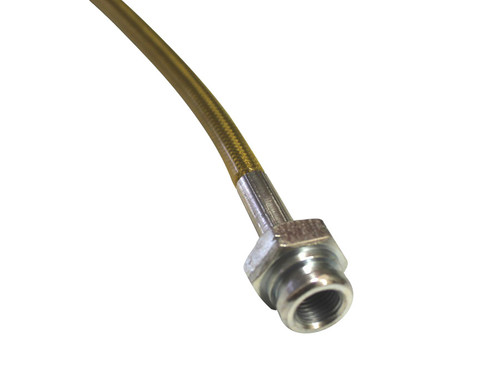

• Lines are made in America with BrakeQuip hose and fittings

Two configurations

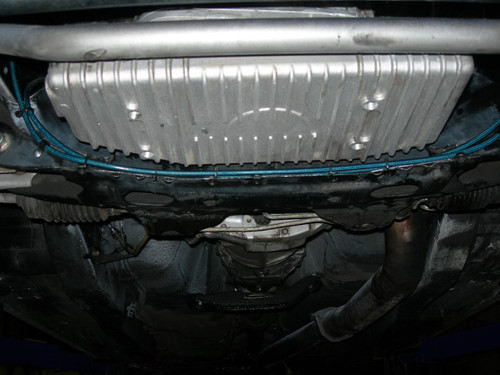

The kit can be purchased to replace just the stock hard lines, or extended to replace the lines all the way out to the front calipers. Choose the extended version if you want a full flexible line run from the master cylinder to the calipers with no factory hard line left in the system.

Requirements

• Must be used with an S13 style master cylinder
• Nissan 240SX S13 or S14 chassis

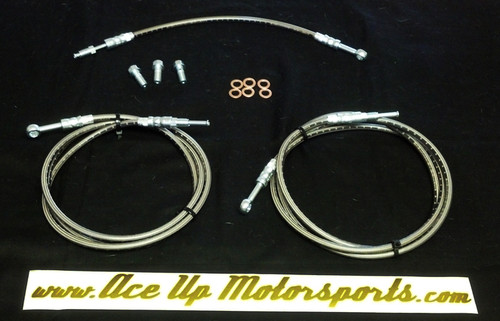

Included hardware

• 3x banjo bolts
• 6x crush washers

Installation

Professional installation is required. Brake line installation should be done by a professional mechanic, with the system bled fully and every fitting checked for leaks before the car is driven. Installation instructions are provided with the kit.

All performance products are designed for off-road use only.
