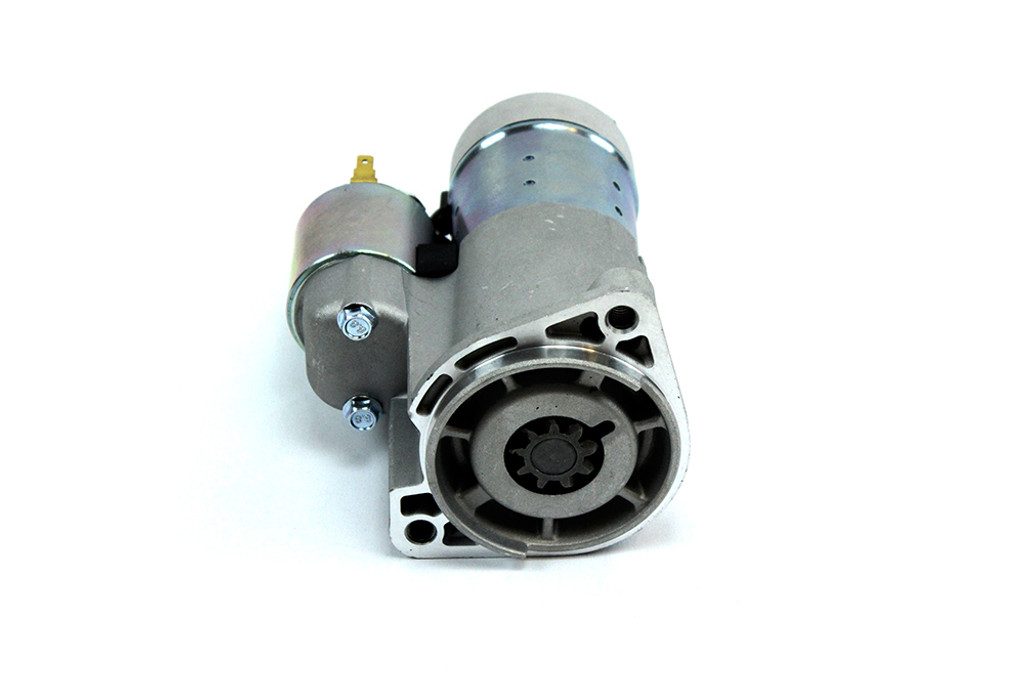

ISR Performance OE Replacement Starter - Nissan SR20DET S13/S14

The ISR Performance OE replacement starter for the Nissan SR20DET S13 and S14 is a direct replacement starter motor for the SR20DET as found in the 240SX. Starters on SR swaps lead a hard life: heat from the turbo and manifold, repeated cranking on a tuned engine, and decades of use. When yours starts dragging, clicking or spinning without engaging, this is the replacement.

Details

• OE replacement starter motor for the SR20DET
• Fits S13 and S14 applications
• Replaces the original unit without modification

Signs a Starter Is Failing

• Single click with no cranking despite a charged battery
• Slow, labored cranking when the engine is hot
• Grinding as the pinion fails to engage the flywheel cleanly
• Intermittent no-start that comes and goes with temperature

Fitment

Nissan SR20DET in the 240SX S13 and S14 chassis. Confirm your engine uses the SR20DET starter mounting and the matching flywheel or flexplate tooth count, especially on swapped cars with a non-original transmission.

Install Notes

Disconnect the battery before starting. The starter bolts to the bell housing on the intake side of the engine; check the main battery cable and signal wire for corrosion while they are off, since a bad connection will mimic a failed starter. If the turbo heat shield is missing, consider adding one to protect the new unit.

All ISR Performance products are designed for off-road use only.
