ISR Performance Universal 3" Dual Tips ~40" Length. 16" to Dual 24" Exhaust

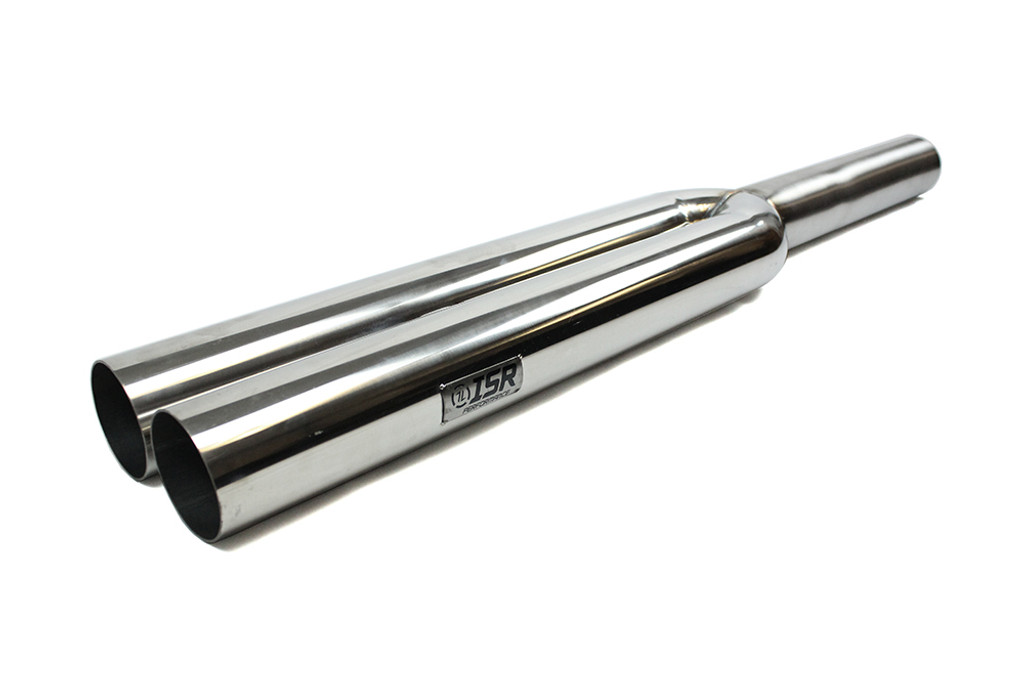

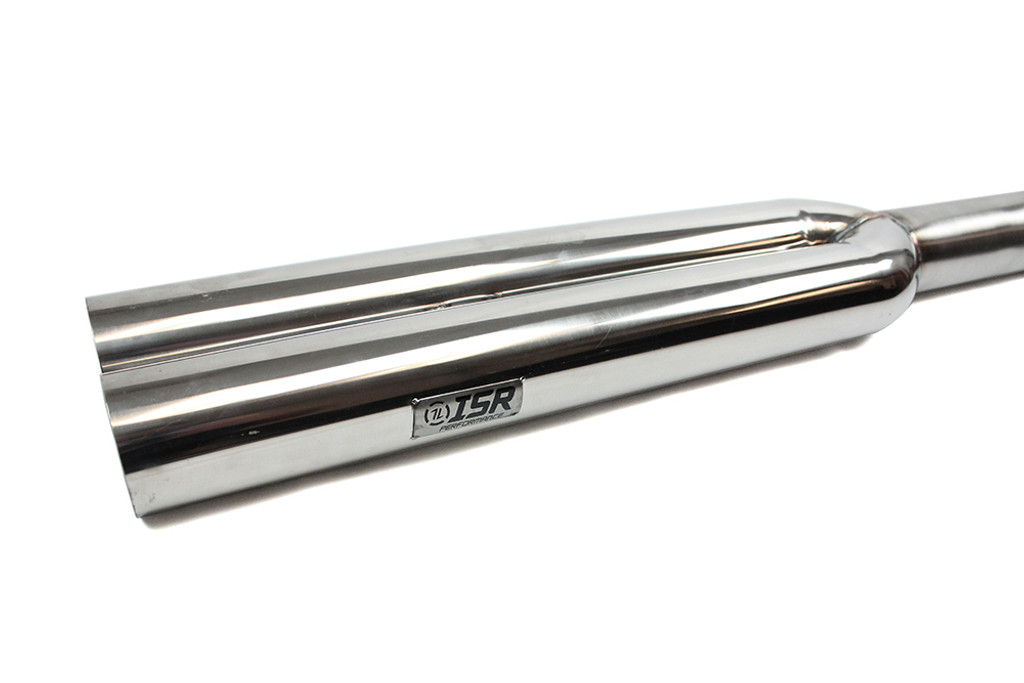

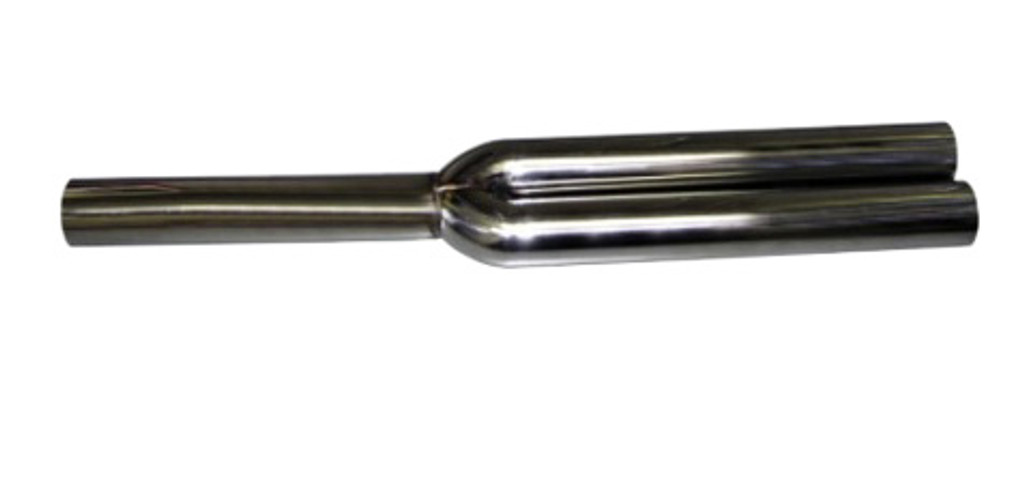

The ISR Performance universal 3 inch dual tip section is a straight pipe splitter for builders who want to fabricate their own race exhaust. A single 3 inch pipe roughly 16 inches long splits into dual 3 inch pipes roughly 24 inches long, for a total length of about 40 inches. It is dual straight pipes, not a muffler, so there is no sound control inside.

Dimensions

• Inlet: 3 inch pipe, approximately 16 inches long
• Outlet: dual 3 inch pipes, approximately 24 inches long
• Overall length: approximately 40 inches

What it is for

This piece gives you the dual tip rear section of a custom straight pipe exhaust without having to form the split yourself. It is modeled on the very popular ISR dual tip straight race exhausts for the Nissan 240SX and 350Z, so you get the same look and layout on a chassis ISR does not make a complete system for, or on a car with custom routing.

Typical uses

• Custom straight pipe race exhaust on a swapped or non standard chassis
• Replacing a damaged dual tip rear section
• Dual exit conversion on a car with 3 inch piping

Fitment

Universal. It is designed to be cut, positioned and welded or clamped to 3 inch exhaust piping. Measure your available length under the car before ordering, since the approximately 40 inch total may need trimming to suit your rear bumper and hanger locations.

Fabrication notes

Bring the inlet to your 3 inch mid pipe with a weld or a 3 inch clamp, then set the tip spacing to match your bumper cutout. Add hangers to the dual section to support the weight and keep the tips from sagging over time.

All ISR Performance products are designed for off-road use only.
