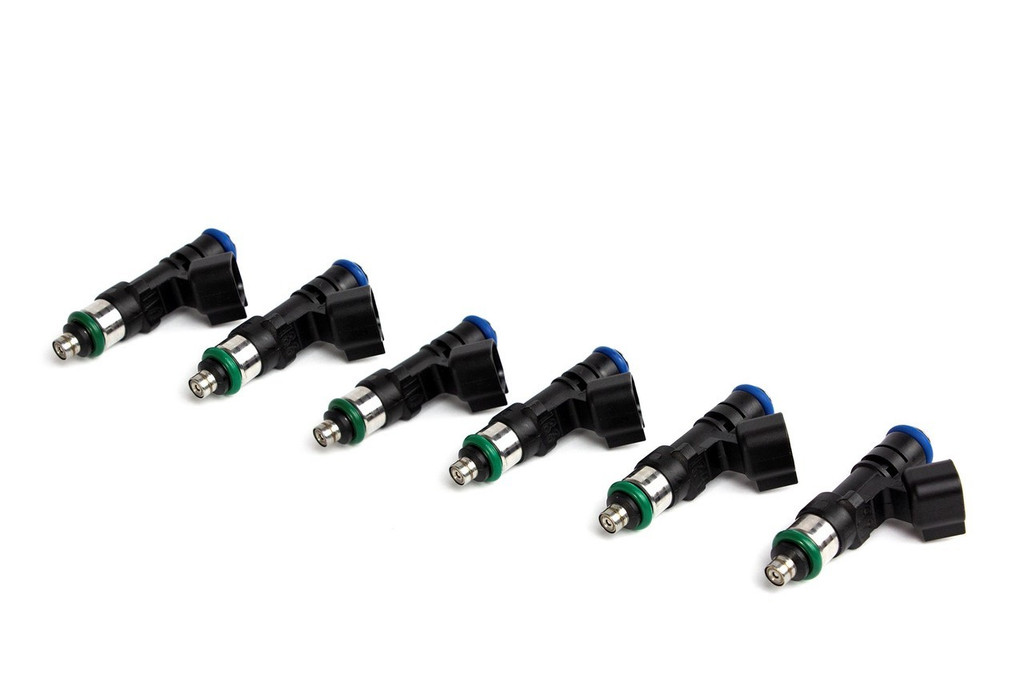

ISR Performance - Top Feed Injectors - 750cc- (set of 6)

ISR Performance 750cc top feed injectors in a set of six are sized for turbocharged six cylinder builds such as the RB series, and they are a direct match for the ISR fuel rail and intake manifold combination offered for SR and RB applications. At 750cc they support a solid step up in fueling over factory injectors while staying usable on pump gas, and because the internals are stainless steel they are E85 compatible when you are ready to switch.

Specifications

• 750cc flow rate
• High impedance
• 48mm height
• 14mm upper o-ring, 14mm lower o-ring
• USCAR connector type
• Stainless steel internals, E85 compatible

Balanced sets

Each set is flow matched to within 2% variation across the transitional, low and linear pulse width ranges, which keeps cylinder-to-cylinder fueling even and makes the tuner's job easier. A flow data sheet is included with the set.

Fitment

These are universal top feed injectors and can be used in any application that accepts a 48mm, 14mm o-ring top feed injector with a USCAR plug. They pair directly with the ISR fuel rail for SR20DET and RB engines.

What's included

• 6x 750cc top feed injectors
• Injector o-rings
• Injector flow data sheet

Please note

Pigtails and connectors are not included. If your harness does not already use USCAR plugs, order ISR USCAR pigtails separately, one per injector.

All ISR Performance products are designed for off-road use only.
