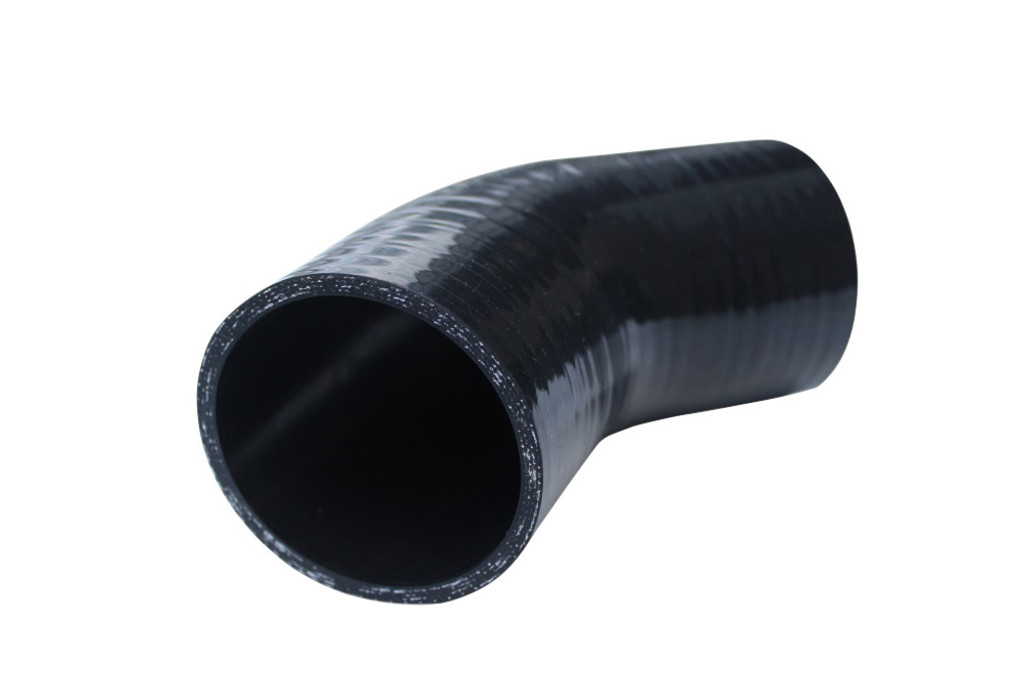

ISR Performance - Silicone Coupler - 2.75" 45 Degree - Black

ISR Performance's 2.75 inch 45 degree silicone coupler is a black elbow that angles 2.75 inch piping by 45 degrees. The 2.75 inch size is common on VQ intake tubes and on charge piping that has grown beyond 2.5 inch, and a 45 at this size helps route the pipe past the radiator support or toward a throttle body that sits at an angle to the intercooler outlet. The silicone construction stands up to engine bay heat and holds a seal under pressure or vacuum.

Elbow specs

• 45 degree elbow, 2.75 inch inside diameter
• Black silicone construction
• Moderate bend that keeps airflow smoother than a right angle
• One elbow per listing

Fits

Universal. Joins two 2.75 inch OD pipes at 45 degrees on intake, intercooler or fabricated charge piping across any chassis. Measure the pipe before ordering, as 2.75 inch is easy to mistake for 2.5 or 3 inch.

Fitting notes

Clamp each leg with a 2.75 inch T-bolt clamp over the straight section. Push the pipes in far enough for the clamp to grip solid pipe but not so far that the ends meet inside the bend. Recheck clamp tension after the first few heat cycles. Weight is around 1 lb.

All ISR Performance products are designed for off-road use only.
